Desion Supply AG

ENGINEERING AND SUPPLYING YOUR VISION

ABOUT

We are a Swiss engineering and supply chain company with a subsidiary in Thailand

You want to buy parts in Asia? Sounds easy, but its not. Communication, quality and delivery times are a challenge which cannot be overcome, unless you have many years of experience and only if you are on site to manage. Two of our Swiss engineers are situated in Thailand. ​For over 7 years they have sourced locally and delivered mechanical parts and assemblies to customers in Switzerland and Germany.

At our subsidiary in Thailand we have an assembly line, a quality department and we do our own packaging and exporting. We currently work together with 15 family owned manufacturers and are specialized in delivering mechanical precision parts (milling, turning, grinding, welding etc.). We have a very good understanding of the price level in Thailand and can therefore offer you a price advantage compared to European manufacturers.

Alex Baechler

Founder and director of Desion Supply AG / Desion AG

Our subsidiary in Thailand

Where

  • 15 Manufacturers in Thailand

  • 7 years collaboration

  • Only validated and audited companies

  • Some manufacturers are ISO 9001 certified

  • Modern machines (DMG, Mazak, Haas, Hartford, Zeiss, Wenzel, Keyence)

  • We only work with family owned companies, that take great care of their workers. As a result there are almost no fluctuations. Same workers equals consistent quality.

CNC machines

Quality

As engineers and polymechanics we understand quality requirements. Its our top priority and we never compromise on the quality.

Two step quality control:

  1. Every dimension is remeasured by the manufacturers quality control department and written down in a report, which will be delivered as well.

  2. Every part will be checked a second time by our quality control department at our own facility as well as by our two Swiss engineers on site.

​With the two step quality control we can guarantee, that only flaweless parts will be send and delivered.

  • air-conditioned QC rooms

  • Modern equipment ( CMM, height gauge, micrometers, go/nogo gauges etc.)

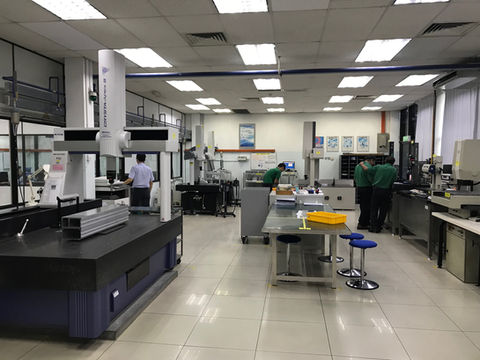

QC room CMM
CNC milling

Why

Swiss companies are almost always competing international. The pricing pressure is often high and the required delivery times short. We like to help and support you as much as possible, whatever your needs are.

CNC milling
  1. Write us an email to info@desionsupply.ch and send us the fabrication drawings and the needed quantities.

  2. We will quote in within one week.

  3. Once the order is confirmed, we will fabricate the parts in Thailand and deliver your parts in within 5 weeks. You dont have to deal with transportation or importing.

Process

What

We are specialized in middle-complexe machined parts and also have experience in supplying complete assembly groups
The following are only some of the most commonly used practices by us. We are open for any inquiry as we are able to process many more materials and treatments.

Fabrication processes

Turning

Max. weight: ca. 30kg

Max. dimensions: d300mm, L2000mm



Milling

Max. weight: ca. 30kg

Max. dimensions: 250x700x1500mm



Grinding

Round max. dimensions: d300, L700mm

Flat max. dimensions:  400x600mm



Welding

Mounting, Glueing, Pressing

Delivery of complete assemblies



Deep drilling

Max. dimension: d25mm

Laser engraving

Plastic injection

Alu/Zinc diecasting

Steel-casting

Sheet metal (Laser, Bending, welding)

Pinions

Internal teeth

External teeth

Tolerances

Hole to hole:        +-0.01 (<400mm in length)

Hole to hole:        +-0.02 (>400mm in length)

Hole to hole:        +-0.03 (>1000mm in length)

Hole to hole:        +-0.04 (>1500mm in length)

Concentricity:       0.01

Diameter:              min. IT06

Hole:                      min. IT07

Materials

Aluminum

2024

5083

6061

6063

6082

6063 (extruded profiles)

almost all of 2000/5000/6000/7000 are available

Stainless steel

1.4301

1.4305

1.4401

1.4404

1.4034 (magnetic)

1.4104 (magnetic)

1.4057 (magnetic)

1.4112 (magnetic)

1.4016 (magnetic)

Steel

ETG 88/100

Ck45

Ck60

S235 / S355 / E235 / E355

1.1191 (C45E)

1.0718

1.7131

1.2294 (very competitive prices with this material)

Inconel

Plastic

POM

PA6

Peek

Brass/Copper

2.0966

2.1090

2.0401

2.0380

Currently not available

Weldural

Surface treatments

Aluminum

Anodize

Hard-anodize

Altefieren (partner in CH)

Steel

Electroless (chemical) nickel plating

Zinc coating

Hard-chrome

Induction hardening

Vacuum hardening

Gas-nitriding

Electro-polish

QPQ

General treatments

Powdercoating

Painting

Vibratory grinding

Turning

Milling

Sheet metal

Welding

Plastic Milling and Injection

Aluminum Diecasting

Surface finishing

Transport costs

  • For our Swiss clients we offer DDP. We take care of the transport and the customs. You will not receive an additional bill for import taxes and VAT.

  • For our foreign clients we offer DAP. We take care of the transport and the customs. You will receive an additional bill for import taxes and VAT.

  • Packaging and the weight of the packaging are free of charge.

  • If you order more than 36kg: the shipping and import costs are 7.5CHF/kg (based only on the total weight of the parts).

  • If you order less than 36kg: Here a few examples of different costs for different weights.

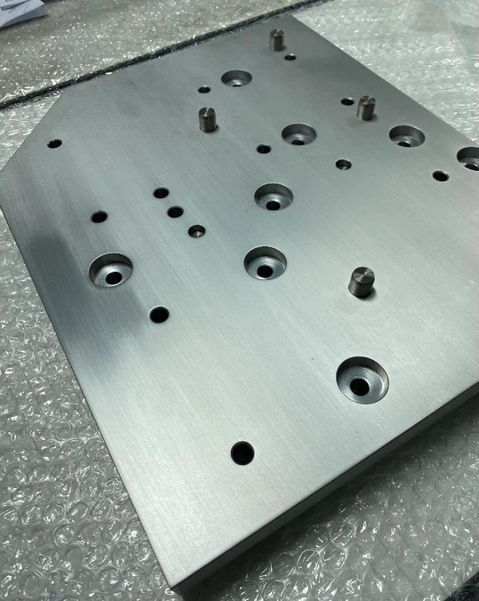

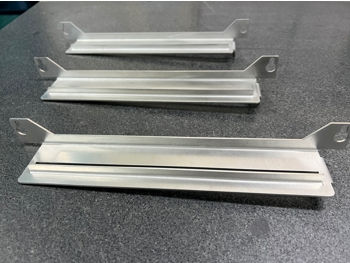

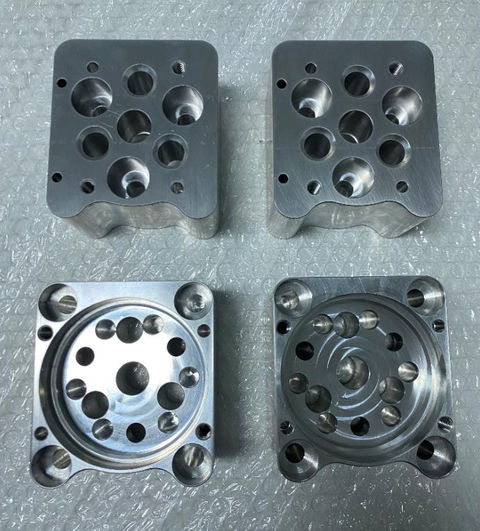

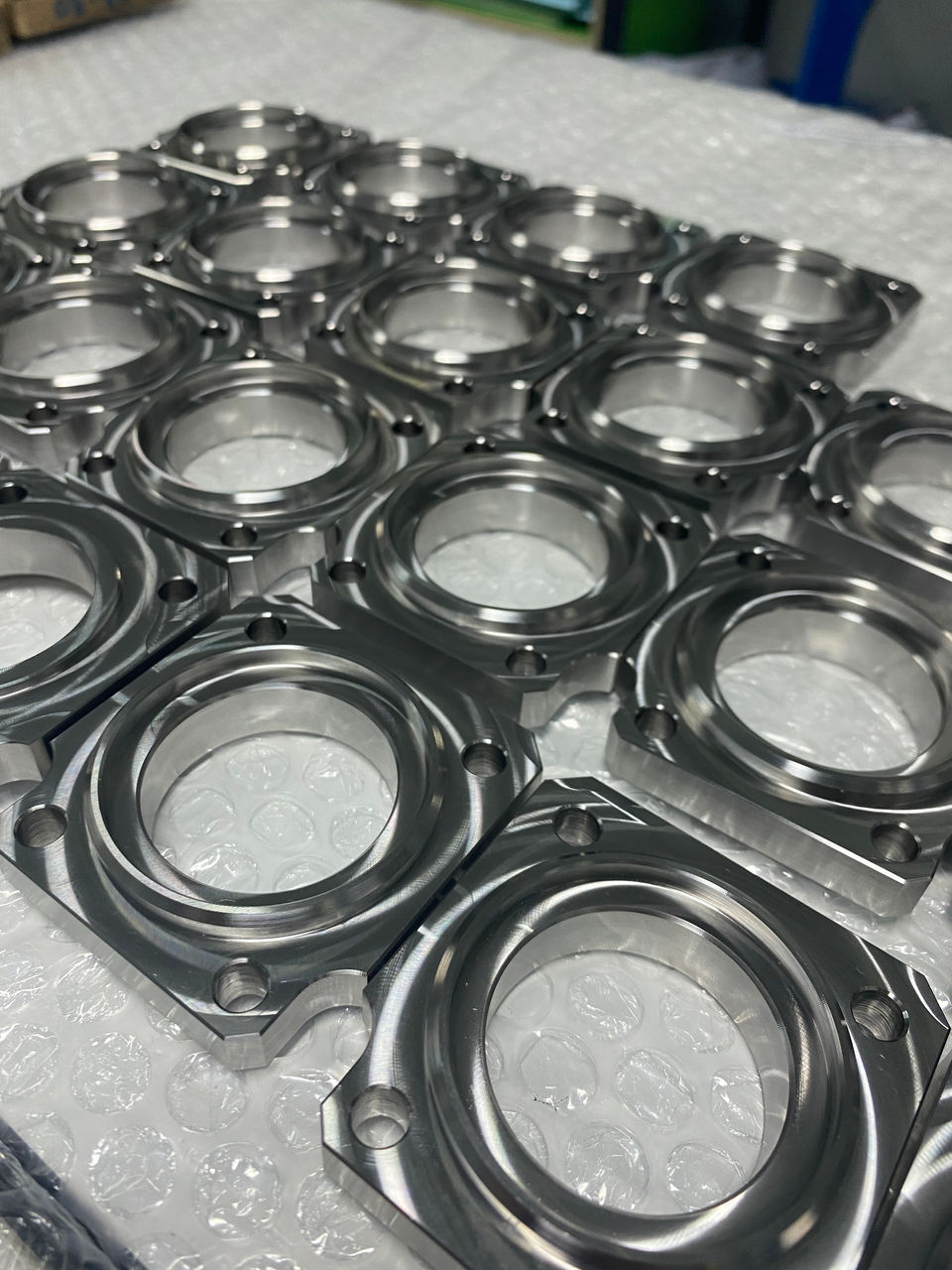

Impressions
